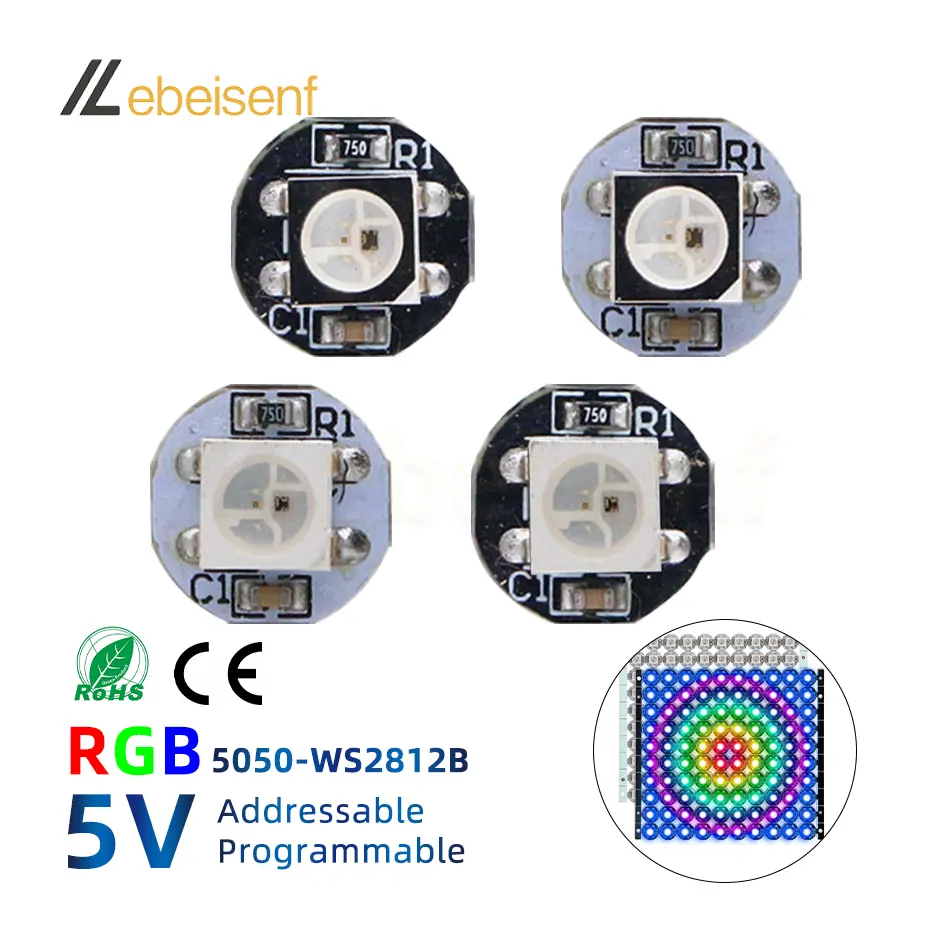

DC5V WS2812B LED Pixel Lamp Module Small Round Board Heat Sink Magic Color String Light SMD 5050 RGB Built-in 2812 Addressable IC Black or White PCB Aluminum Plate

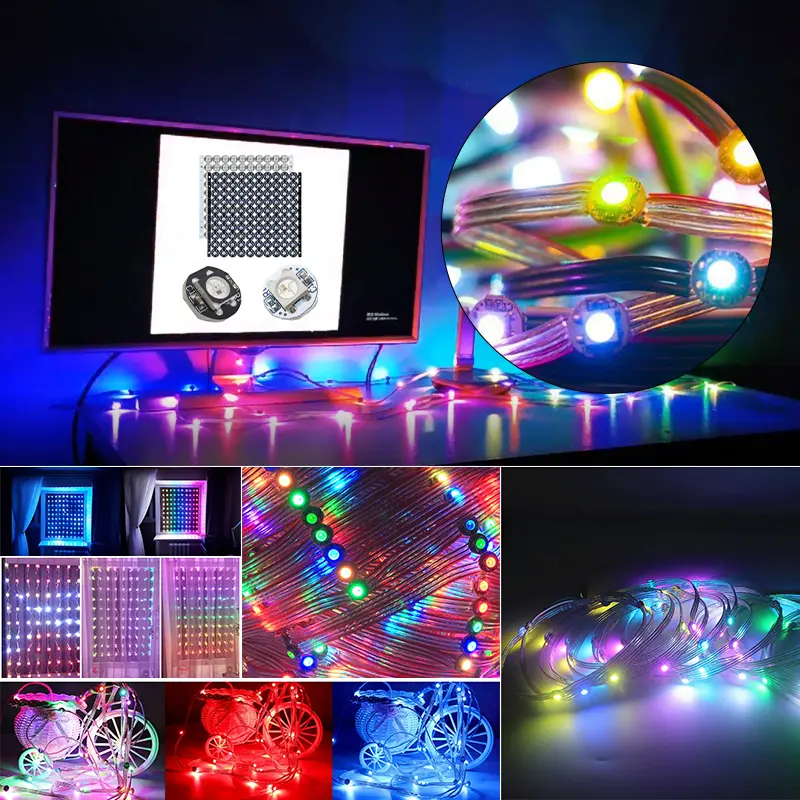

For DIY Point Light Source String Lights

Feature function:

Intelligent reverse connect protection, the power supply reverse connection does not damage the IC.
The control circuit and the LED share the only power source.

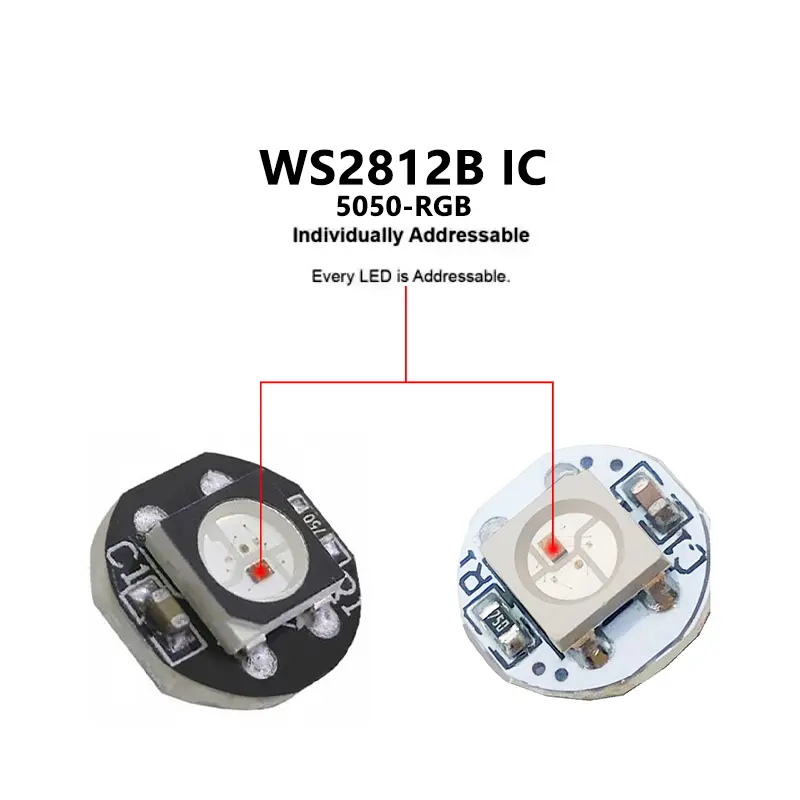

Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point.
Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.
Built-in electric reset circuit and power lost reset circuit.
Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display, and scan frequency not less than 400Hz/s.
Cascading port transmission signal by single line.
Any two point the distance more than 5m transmission signal without any increase circuit.
When the refresh rate is 30fps, cascade number are not less than1024 points.
Send data at speeds of 800Kbps.
The color of the light were highly consistent, cost-effective..

Product Specification:

IC Model: WS2812B
the gray level: 256
Beam angle: 180 °
Color order :GRB (NOT RGB)
Power: 0.3W ± 0.01%(1LEDs)
plate: aluminum plate

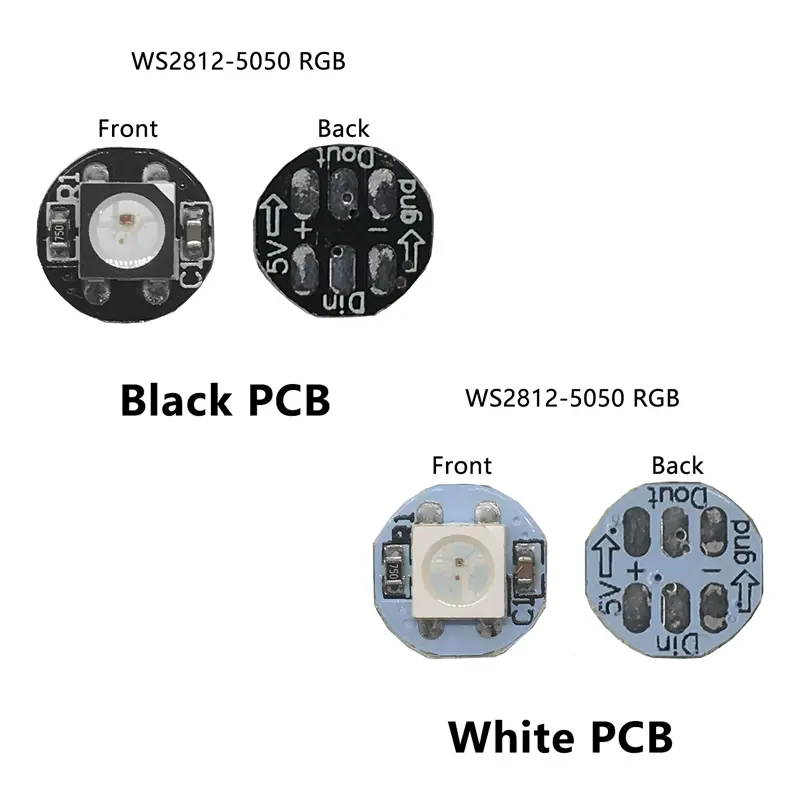

FPCB board color: White/Black
Waterproof: IP30 non-waterproof
The standard operating voltage: DC 5V

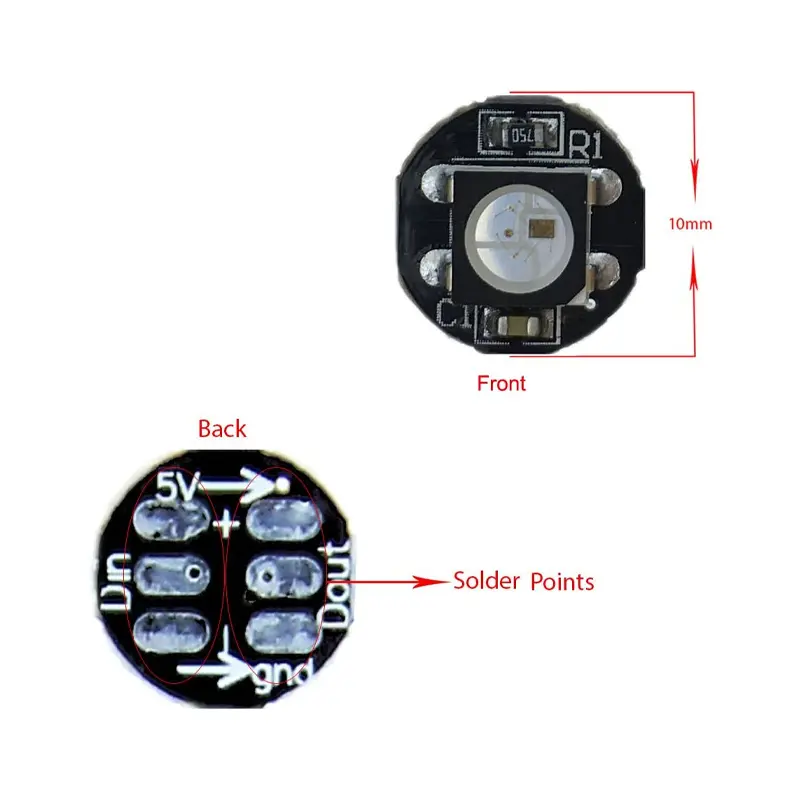

PCB board size: Width: 10 mm, thickness: 3mm
Model: WS2812 pixel board light source: SMD 5050 RGB
Color: full color, can be adjusted by the controller as follows: white, red, yellow, blue, green, etc.

Product Wrap:

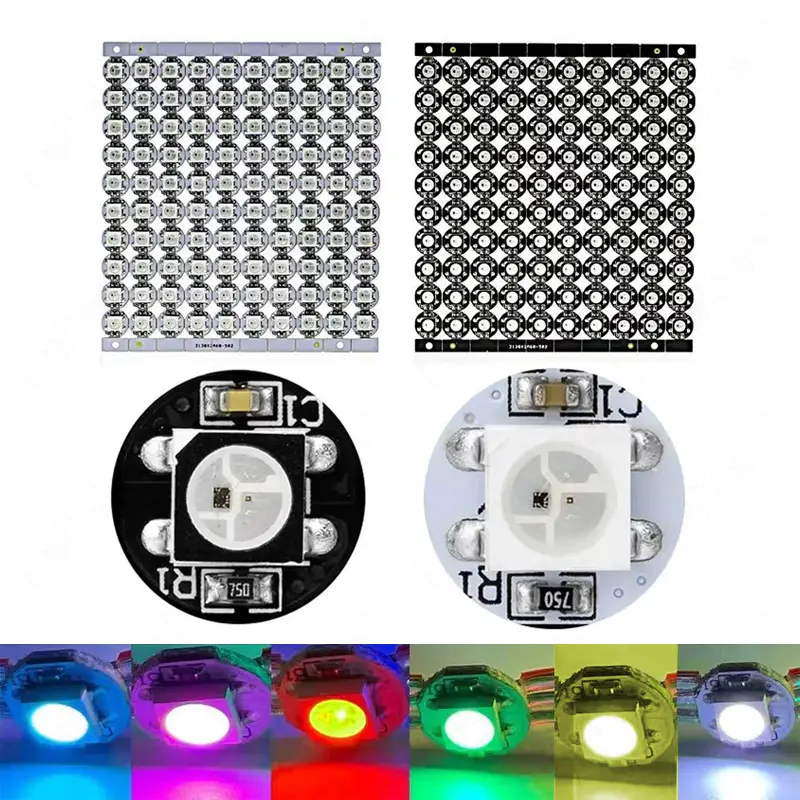

1 lot = 10 Pcs LED Light Board Beads

Voltage instructions

Please choose the power supply of the same voltage according to the voltage of LED lights. Not the controller
